| Part No | 90NB0YD2-M008J0 |
| Model Name | K6501ZM-MA165 |
| |
| EAN Code | 4711387036402 |
| UPC Code | 197105036406 |
| |
| Operating System | No preinstalled OS |
| LCD cover-material | Aluminum |
| LCD cover-color | Cool Silver |
| Top case-material | Plastic |
| Top case-color | Spangle Silver |
| Bottom case-material | Plastic |
| Bottom case-color | Spangle Silver |
| Military grade | US MIL-STD 810H military-grade standard |
| Touch Panel | Non-touch screen |
| Panel Size | 15.6-inch |
| Resolution | 2.8K (2880 x 1620) OLED 16:9 aspect ratio |
| Response time | 0.2ms response time |
| Refresh rate | 120Hz refresh rate |
| Brightness | 400nits |
| Peak Brightness | 600nits HDR peak brightness |
| Color gamut | 100% DCI-P3 color gamut |
| Gamut mapping | Yes |
| Contrast ratio | 1,000,000:1 |
| VESA CERTIFIED Display HDR | VESA CERTIFIED Display HDR True Black 600 |
| Color depth | 1.07 billion colors |
| Pantone | PANTONE Validated |
| Glare | Glossy display |
| Low blue light | 70% less harmful blue light |
| T?V Rheinland-certified | TÜV Rheinland-certified |
| SGS Eye Care Display | SGS Eye Care Display |
| Screen-to-body ratio | 83 ％ |
| Processor | Intel® Core™ i7-12700H Processor 2.3 GHz (24M Cache, up to 4.7 GHz, 6P+8E cores) |
| Chipset | N/A |
| Discrete/Share | Discrete |
| Intergrated GPU | Intel® UHD Graphics |
| Disclaimer for Intel Iris Xe | *Intel Iris Xᵉ Graphics is only available in models with Intel® Core™ i5/i7/i9 processors and dual-channel memory. |
| Graphics | NVIDIA® GeForce® RTX™ 3060 Laptop GPU |
| VRAM | 6GB GDDR6 |
| Expansion Slot(includes used) | 1x DDR5 SO-DIMM slot
1x M.2 2280 PCIe 3.0x4
1x M.2 2280 PCIe 4.0x4 |
| On board memory | 16GB DDR5 on board |
| DIMM Memory | 16GB DDR5 SO-DIMM |
| Total System Memory | DDR5 32GB |
| Disclaimer for memory | *Dual-channel memory support requires at least one SO-DIMM module. |
| Storage | 1TB M.2 NVMe™ PCIe® 4.0 SSD |
| Front-facing camera | 1080p FHD camera ; With privacy shutter |
| Wireless | Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5 |
| ScreenPad? | N/A |
| FingerPrint | FingerPrint |

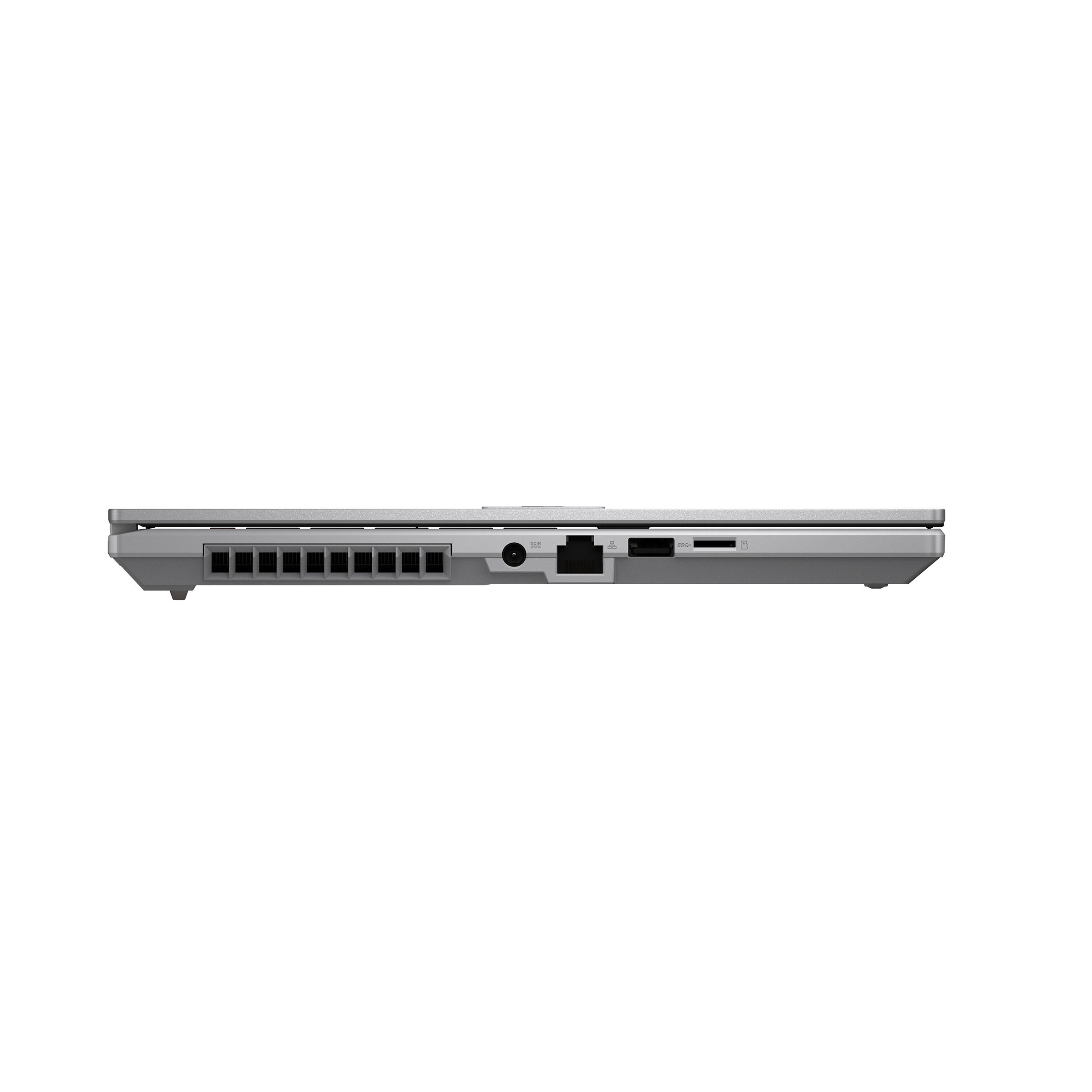

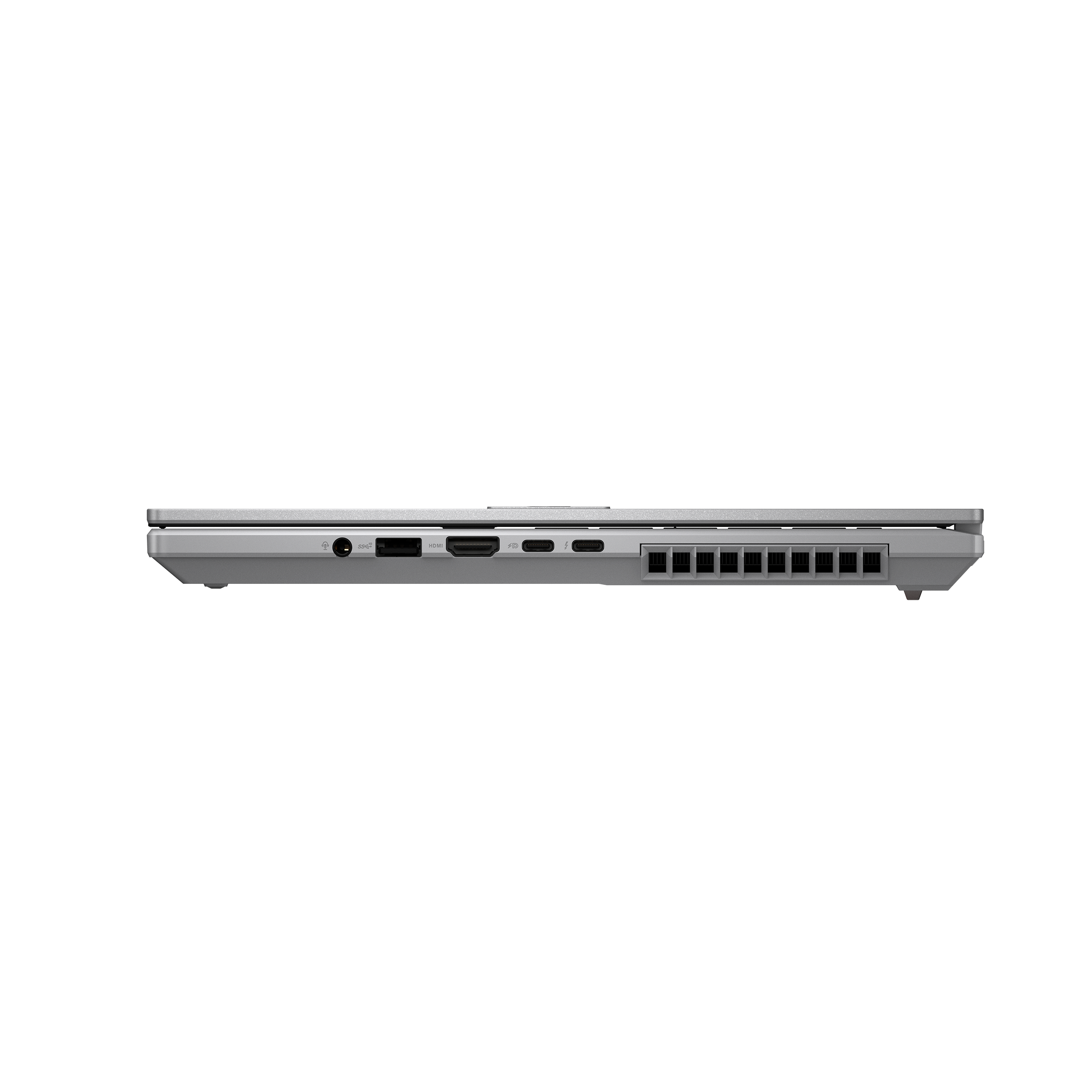

| I/O ports | 1x USB 3.2 Gen 1 Type-A
1x USB 3.2 Gen 2 Type-A
1x USB 3.2 Gen 2 Type-C support display / power delivery
1x Thunderbolt™ 4 supports display / power delivery
1x HDMI 2.1 FRL
1x 3.5mm Combo Audio Jack
1x RJ45 Gigabit Ethernet
Micro SD Express 7.1 card reader |
| Audio | Built-in speaker
Built-in array microphone
harman/kardon (Mainstream) |
| Voice control | with Cortana support |
| AC Adapter | ø6.0, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240V AC 50/60Hz universal |
| Battery | 76WHrs, 4S1P, 4-cell Li-ion |
| Replaceable Battery | No |

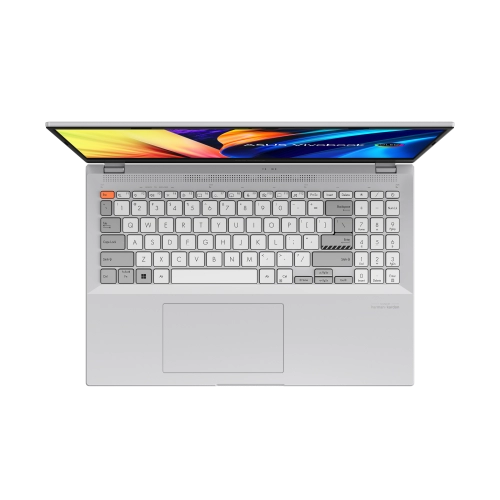

| Keyboard type | Backlit Chiclet Keyboard with Num-key |
| Dimension (WxHxD) | 35.54 x 23.98 x 2.09 ~ 2.09 cm |
| Weight (with Battery) | 2.10 kg |
| Weight (without Battery) | 1.82 kg |
| Security | Fingerprint sensor integrated with Power Key
McAfee® LiveSafe™
BIOS Booting User Password Protection
Trusted Platform Module (Firmware TPM) |
| MyASUS feature | System diagnosis
Battery health charging
Fan Profile
Splendid
Tru2Life
Function key lock
WiFi SmartConnect
Link to MyASUS
TaskFirst
Live update
AI Noise Canceling |
| Built-in Apps | MyASUS
ProArt Creator Hub
ScreenXpert
GlideX |
| Adobe Creative Cloud Hard Bundle | Three-Month Membership of Adobe Creative Cloud All Apps, Individual.
The redemption duration from September 15, 2021 to November 15, 2022. |
| Included in the Box | 3-in-1 backpack |
| Reparability Index (for France) | 7.7 |
| PDID | 20589 |
