| Part No | 90NB0WU1-M007N0 |
| Model Name | UX7602ZM-ME026W |
| |
| EAN Code | 4711387036334 |
| UPC Code | 197105036338 |
| |
| Operating System | Windows 11 Home - ASUS recommends Windows 11 Pro for business |
| Office | 1-month trial for new Microsoft 365 customers. Credit card required. |
| LCD cover-material | Aluminum |
| LCD cover-color | Tech Black |
| Top case-material | Aluminum |
| Top case-color | Tech Black |
| Bottom case-material | Aluminum |
| Bottom case-color | Tech Black |
| Military grade | US MIL-STD 810H military-grade standard |
| Touch Panel | Touch screen |
| Panel Size | 16.0-inch |
| Resolution | 4K (3840 x 2400) OLED 16:10 aspect ratio |
| Response time | 0.2ms response time |
| Refresh rate | 60Hz refresh rate |
| Peak Brightness | 550nits HDR peak brightness |
| Color gamut | 100% DCI-P3 color gamut |
| Contrast ratio | 1,000,000:1 |
| VESA CERTIFIED Display HDR | VESA CERTIFIED Display HDR True Black 500 |
| Color depth | 1.07 billion colors |
| Pantone | PANTONE Validated |
| Glare | Glossy display |
| Low blue light | 70% less harmful blue light |
| T?V Rheinland-certified | TÜV Rheinland-certified |
| SGS Eye Care Display | SGS Eye Care Display |
| Screen-to-body ratio | 90 ％ |
| Processor | Intel® Core™ i7-12700H Processor 2.3 GHz (24M Cache, up to 4.7 GHz, 6P+8E cores) |
| Chipset | N/A |
| Discrete/Share | Discrete |
| Intergrated GPU | Intel® Iris Xe Graphics |
| Disclaimer for Intel Iris Xe | *Intel Iris Xᵉ Graphics is only available in models with Intel® Core™ i5/i7/i9 processors and dual-channel memory. |
| Graphics | NVIDIA® GeForce® RTX™ 3060 Laptop GPU |
| VRAM | 6GB GDDR6 |
| How to upgrade memory | Not Available |
| Expansion Slot(includes used) | 1x M.2 2280 PCIe 4.0x4 |
| On board memory | 16GB LPDDR5 on board |
| Total System Memory | LPDDR5 16GB |
| Storage | 1TB M.2 NVMe™ PCIe® 4.0 Performance SSD |
| Front-facing camera | FHD camera with IR function to support Windows Hello ; With privacy shutter |
| on board Wireless | Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5 |
| 3G/4G | N/A |
| NumberPad | Support NumberPad |
| ScreenPad? | N/A |
| FingerPrint | FingerPrint |

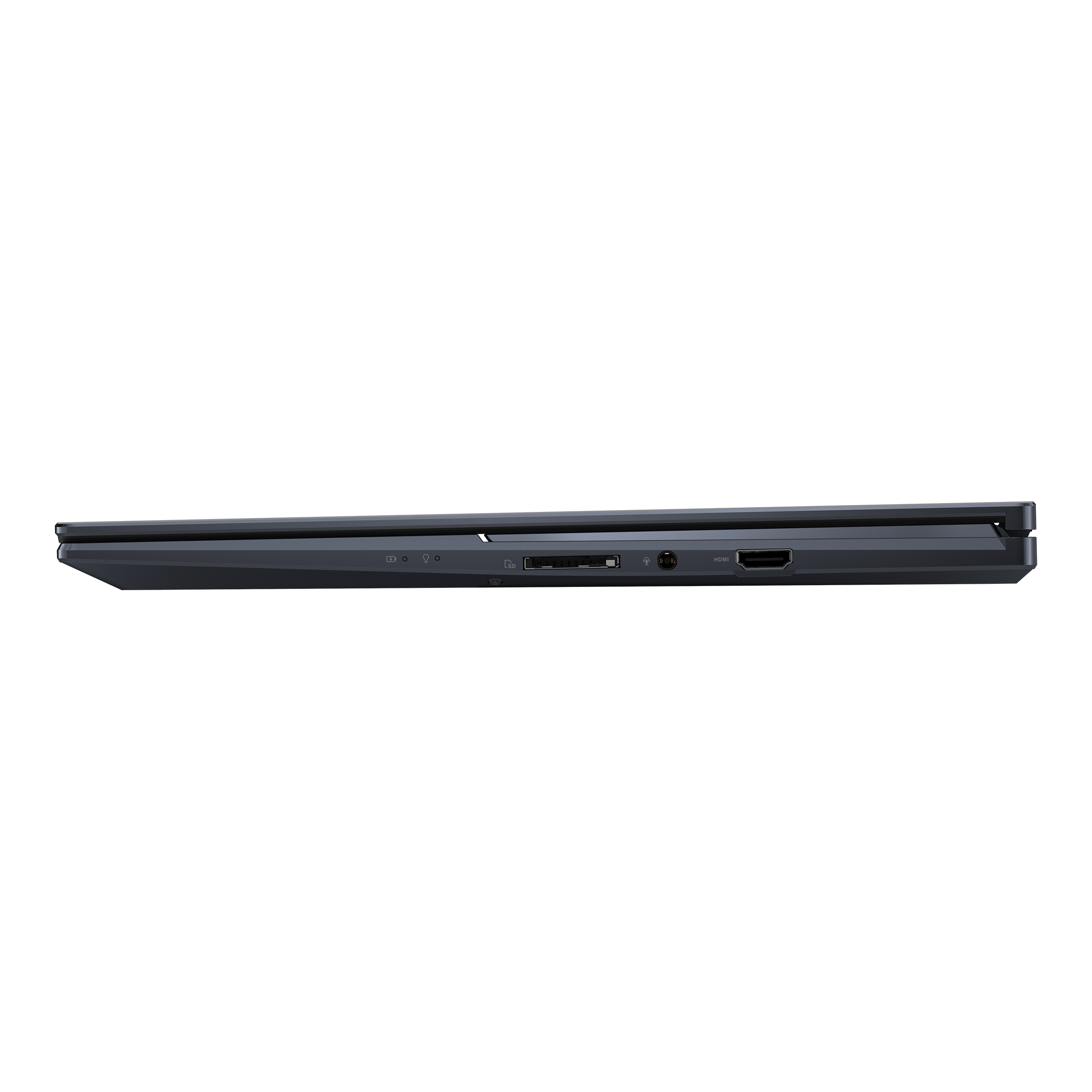

| I/O ports | 1x USB 3.2 Gen 2 Type-A
2x Thunderbolt™ 4 supports display / power delivery
1x HDMI 2.1 FRL
1x 3.5mm Combo Audio Jack
1x DC-in
SD Express 7.0 card reader |
| Audio | Smart Amp Technology
Built-in 4-way stereo speakers
Built-in array microphone
harman/kardon (Premium) |
| Voice control | with Cortana and Alexa voice-recognition support |
| AC Adapter | ø6.0, 200W AC Adapter, Output: 20V DC, 10A, 200W, Input: 100~240V AC 50/60Hz universal |
| Battery | 96WHrs, 3S2P, 6-cell Li-ion |
| Replaceable Battery | No |
| Keyboard type | Backlit Chiclet Keyboard Per-Key RGBW with N-key Rllover |
| Dimension (WxHxD) | 35.50 x 25.10 x 1.69 ~ 1.78 cm |
| Weight (with Battery) | 2.40 kg |
| Weight (without Battery) | 2.20 kg |
| Security | Fingerprint sensor integrated with Power Key
IR webcam with Windows Hello support
McAfee® LiveSafe™
BIOS Booting User Password Protection
Trusted Platform Module (Firmware TPM) |
| MyASUS feature | System diagnosis
Battery health charging
Fan Profile
Splendid
Tru2Life
Function key lock
WiFi SmartConnect
Link to MyASUS
TaskFirst
Live update
ASUS OLED Care
QC fastcharge
AI Noise Canceling
Wi-Fi Rangeboost
AdaptiveLock |
| Built-in Apps | MyASUS
ProArt Creator Hub
ScreenXpert
GlideX |
| Adobe Creative Cloud Hard Bundle | Three-Month Membership of Adobe Creative Cloud All Apps, Individual.
The redemption duration from September 15, 2021 to November 15, 2022. |
| Included in the Box | Backpack
Stylus (ASUS Pen 2.0 SA203H-MPP2.0 support)
USB-A to RJ45 gigabit ethernet adapter |
| Reparability Index (for France) | 8.1 |
| PDID | 20512 |
